Dizzy: Power Distribution board

Constructional Difficulty: Easy

This is a power distribution board supporting twelve 0.156" MTA/Molex headers and one four way terminal block for power entry. Also present are eight 0.1" headers that connect to the Oakley Buss. These allow partial normalisation of CV and gates if required.

The double sided circuit board is 5.6" (142mm) long by 2.35" (60mm) wide. It is designed to go at the rear of 19" rack units or built into the bottom panel of wooden modular cases.

It is fully compatible with MOTM and Oakley power busses. An optional earthing point is also available.

The issue 3 Dizzy board. The empty INLET location will be hardwired to the power supply module. Alternatively, one could use a 0.2" screw terminal block.


Click here for how to order.

Dizzy PCB issue 3 ................................ 15GBP

All other parts can be purchased from your usual electronic component supplier.

All prices include VAT at UK rates. Shipping and postage is additional to these prices.

Pre-populated Dizzy boards are usually available from Krisp1.com.

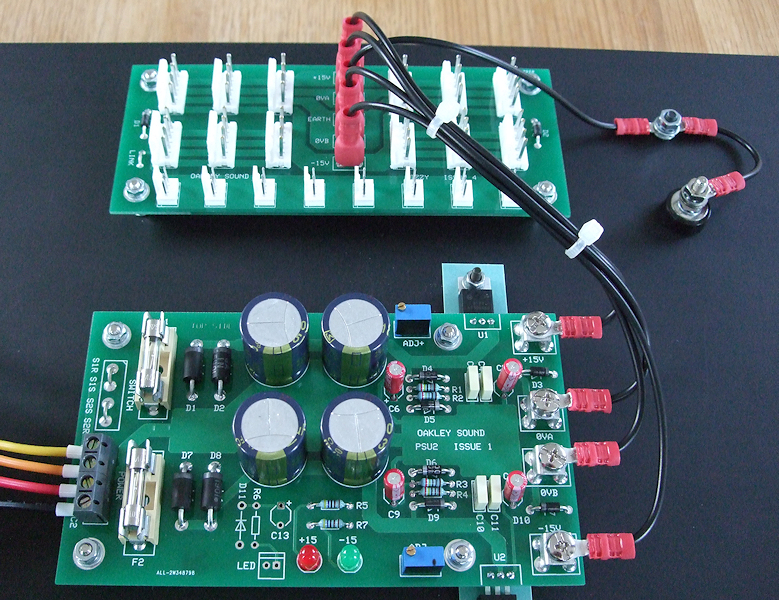

The issue 3 Dizzy connected to an issue 2 PSU and fitted to a 4U high 19" rack panel. An assembly like this would be attached to the rear of a 19" rack case and would power up to twelve Oakley modules. On this panel space for an additional Dizzy is available just below the first Dizzy - you can just see the punch marks for the four mounting holes.

Project Downloads

Builder's Guide

Dizzy issue 3 schematic

Construction Guide Our handy guide to building Oakley DIY projects

Parts Guide Our handy guide to buying parts for Oakley DIY projects
