Constructional Difficulty: Easy

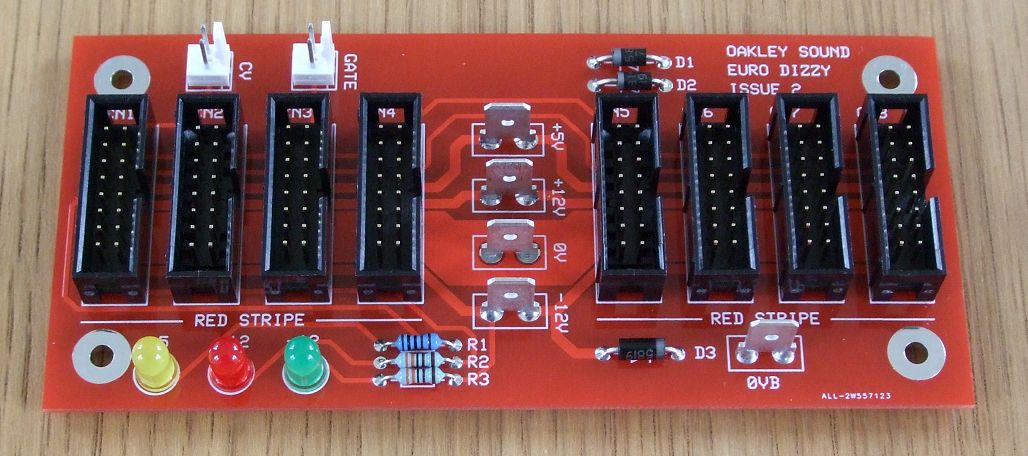

This is a power distribution board supporting eight 16-way IDC headers and four faston headers for power entry. Also present are two 0.1" headers that connect to the CV and gate bus and three LED power ready indicators.
The 2oz copper double sided circuit board is 5.6" (142mm) long by 2.35" (60mm) wide. It is designed to go at the rear of 19" rack units or built into the bottom panel of wooden modular cases. Short distribution boards with centrally located power inlets, such as this one, offer lower resistance connections than longer thinner distribution boards.
An optional 0V point is also available which can be used for additional grounding.

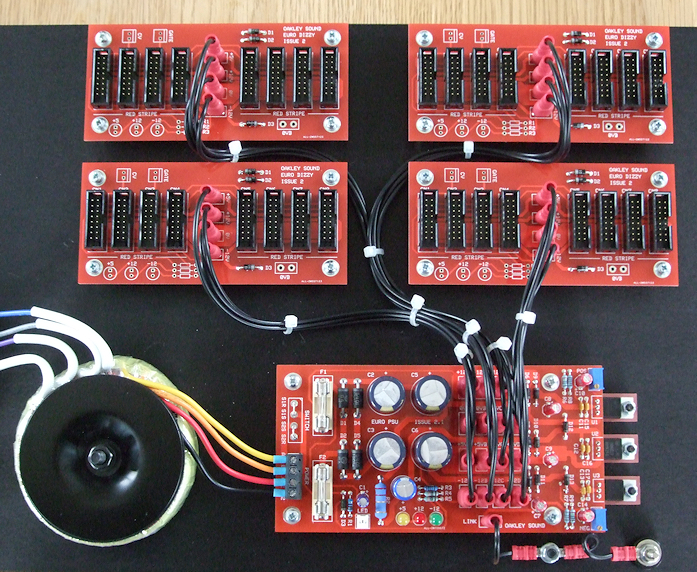

This is a mains powered build of the Oakley Euro PSU being used to power four Euro Dizzy boards.
Click here for how to order.
Euro Dizzy PCB issue 2 ................................ 10GBP
Please note this is a bare printed circuit board and does not come with any components fitted. All other parts can be purchased from your usual electronic component supplier.
All prices include VAT at UK rates. Shipping and postage is additional to these prices.
Fully populated Euro Dizzy boards may be available from Krisp1.com.
Euro Dizzy Builder's Guide
Euro Dizzy schematic
Construction Guide Our handy guide to building Oakley DIY projects
Parts Guide Our handy guide to buying parts for Oakley DIY projects
Three Euro Dizzy boards powered from one Oakley Euro PSU fitted to a 4U high aluminium 19" rear mounted panel in a 6U high rack case from All Metal Parts. Module mounting rails and rack ends from Tip Top Audio.
