Constructional difficulty: Moderate in 1U format, More difficult in 2U format.
The 1U format 'filter core' Journeyman filter. This offers the basic filter module without the extra CV and audio mixing that the full width 2U module provides.
If our Superladder and SVF are well behaved perfect sounding filters, then this one is the rude boy of filter design. Its completely unlinear response and discrete circuitry gives it a unique sound of its own. Modelled after a classic Japanese filter design of the mid to late 1970s, the Journeyman can be configured in either high pass or low pass modes by the flicking of a switch. When two of these VCFs are used together, one in HP and the other in LP, then the effect is astounding.
The filter heart is made entirely from a single ended discrete design and uses four matching diodes as the control elements. The filter behaves differently depending on the input signal level hence the 'drive' pot on the front panel. Turning this up allows the filter to be overdriven. At full resonance the filter will oscillate across most of the audio band.
The design is intended to fit into a 1U wide 'filter-core' module or a more fully featured 2U wide panel with seven control pots.
The 1U 'Filter Core' format is our new way of handling filter modules. Although the 1U module can be used as a filter module on its own, it is expected that users will make use of external mixers to control CV and audio levels going into the filter. In this way, you will be able to have a collection of space saving 1U filter cores that can be used with any generic mixer module. The Oakley Multimix is an ideal choice for a handy mixer module.
For the 2U design three audio inputs are provided each with its own attenuator. Three CVs can control the cut-off of the filter. One is fixed at approximately 1V/octave, the other two have input attenuators. CV2 features a reversible type attenuator with inverting/non-inverting properties.
The board size is 83 x 143mm.

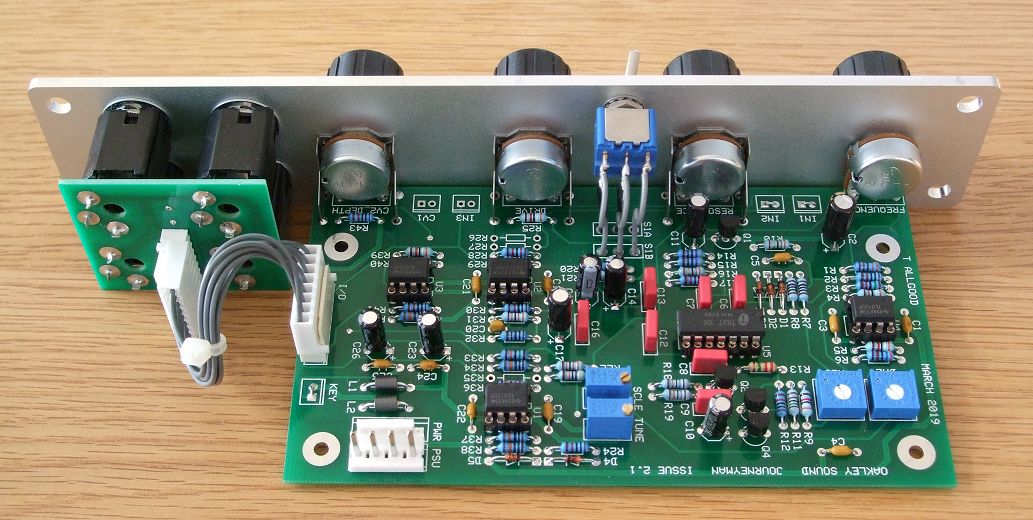

The 1U version of the Journeyman VCF. Note the unused headers near the pots, these would be used on the 2U version for connection to the off board pots.
Parts prices
Journeyman VCF issue 1 PCB
................................... 17GBP
Journeyman VCF issue 1 pot kit .................................
13GBP
Journeyman VCF issue 1 pot bracket kit
................... 4GBP
The Pot Kit contains the four Spectrol 248 potentiometers to complete one 1U filter core module.
The Pot Bracket Kit contains the correct type and quantity of Oakley-Spectrol pot brackets and extra Spectrol nuts required to complete one 1U filter core module.
